Overview of PRODUCT
15 KVA, Three Phase, 415 Volt, 50 Hz, 0.8 P.F.

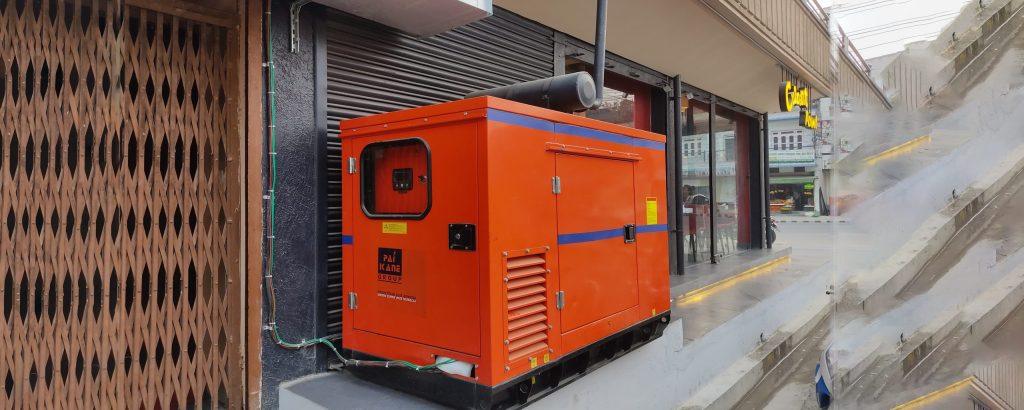

ESCORTS KUBOTA Make Silent Water Cooled Diesel Generator Set Model No ELG-15N comprising of ESCORTS engine model G15-II. 2 No of Cylinders Engines developing 21.6 HP, STAMFORD alternator rated at 15 KVA, 415 Volt.
Fuel Consumption at 90% Load = 2.6 Liters Per Hours
| GENSET TECHNICAL SPECIFICATION |
| Genset Model | | ELG-15N |
| Genset Rating | KVA | 15 |
| Genset Rating | kWe | 12 |
| Rated Current AMP | Amps | 21 |
| ENGINE TECHNICAL DETAILS |
| Engine Model | | G15-II |
| Electric System | Volt | 12 V DC |
| Lub. Oil change Period | Hours | 500 Hour or 6 Months |
| Battery Capacity | AH | 88 AH |
| ALTERNATOR TECHNICAL DETAILS |
| Alternator Model | | STAMFORD |
| Alternator Type | | BRUSHLESS |
| Type of Insulation | | Class H |
| No. of Phase / Voltage | Volt | 230 Volt Single phase or 415 Volt Three Phase |
| Frequency | Hz | 50 Hz |
| CONTROL PANEL |
| Control Panel Model | | MANUAL (Standard) Panel With DSC Controller DSC4520 |
| Type of Panel | | MANUAL (Standard) / Auto Mains Failure (Optional) |
| Make of Controller | | Deep-sea / Equivalent Reputed make |
| ACOUSTIC ENCLOSURE |
| Acoustic Enclosure | | Outdoor Type, Ready to use – (CPCB-II Complaint) |
| Noise Level | dB | 75 dB at 1 Meter |
| Fuel Tank Capacity | Liters | 60 Liters |
| Fuel Tank Location | | Mounted at base Inside Acoustic Enclosure |
| Genset With Weight | Kgs | 700 |
Low Operating Cost :
# Remarkable Fuel Economy with Unmatched Engine Protections: EICHER is the most preferred engine in terms of fuel economy & it saves fuel in the range of 10%-15% over most of the other Engines.
# Very Economical Parts Prices: Low cost of maintenance
# Longer Service Interval: 500 Hours or 12 Months for Lub. Oil, Oil Filter & Fuel Filter.
# No Running-In Period: Even First Service Interval is 500 Hours/12 Months.
High Reliability :
# Compact size: Engine Ideal for roof top installation & helps saving land space.
# Air filter Choke indication: Provide safety indication for chocking of Air Filter.
# Starter Motor with Thermal cut off: Cut off starter motor in case of over starting.
# In-Built Oil Cooler: Suitable for Continuous Operation and Lower Lubricating Oil Consumption.
# Bypass Filter: Secondary Filtration system, provide filtration in case of chocking of primary filter.
# Piston Cooling Jet: provide cooling to piston at high temperature. Lower Break Down & higher reliability
# Extremely Low Vibration: Sculpted/Ribbed block for high rigidity which results to Lower vibration and Lower wear & tear.
# Robust Engine: Used in toughest applications like Construction Equipment, Material Handling, Marine, Agro and Pumping.
Service Efficiency:
# Easy Serviceability: Superior Accessibility of all Service points.
# Easy Spares Availability.
# Commonality of Spare Parts: Most of Spare parts used are common across the range.
# On Site Service Support: Proven technology will ensure that product support is available close by, without waiting for a specialist. EICHER Branded diesel engine does not require any complex or specialized tools for maintenance.
Best Performance:
# Quick Starting & smooth running # Excellent Block Loading Capacity
# Excellent & unmatched fuel Efficiency # Longer Product Life Cycle.
Salient Features:
# Compact Size
# Highest Efficiency in its class,
# Better Response Time and allows faster recovery of stabilized rated voltage
# Excellent Motor starting capability in the range of DG sets
# Ensure constant Voltage operation even at 5% reduced speed band.
Microprocessor Controlled:
A microprocessor based Controller is being provided to the generator with self -diagnostic & self-management system.
Salient Features:
It measures, monitor, control & operate all the required electrical mechanical parameters.
# User friendly LCD display.
# Logs last 50 Fault codes helps operator/service personal for troubleshooting.
# Safeties with annunciation.
# Engine Safeties: High Water Temperature, Low Lub. Oil Pressure, Low
Fuel Level, Charging Failure, Radiator, Water Level, Air Filter Choke.
# Alternator Safeties: Under Voltage, Under Frequency, Over Frequency, Overloading
Control Panel
# Standard Manual Panel / AMF Panel
# MS construction Control panel
# Suitable rating 3 Pole MCB/MCCB
# All critical parameters of Engine and Alternator are displayed on Micro-processor based controller.
# Indoor Type Mounting Inside Acoustic Enclosure (Standard Control Panel)
Optional Feature:
# Auto Mains Failure Panel # Remote Start / Stop Panel
# GPS Based system for Remote monitoring and controlling.
